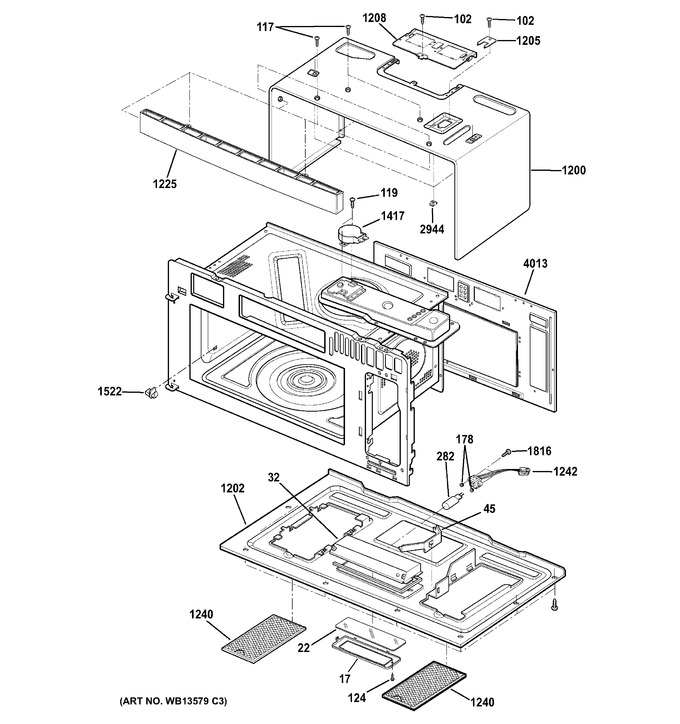

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 17 | WB06X10659 | Bracket Lamp |  |
|||
| 22 | WB36X10345 | Glass | |
|||
| 32 | WB06X10859 | Reflector | |
|||
| 45 | WB06X10657 | Protector (mech) | |
|||
| 102 | WB1X1514 | Screw Tapping | |
|||
| 117 | WB01X10134 | Screw Tapping Pan Head | |
|||
| 119 | WB02X10728 | Screw - Hand | |
|||
| 124 | WB01X10127 | Screw Tapping Truss Head | |
|||
| 178 | WB01X10411 | Nut Hexagon | |
|||
| 282 | WB08X10057 | Lamp Halogen | |
|||
| 1200 | WB56X10855 | Case, Flat | |
|||
| 1202 | WB56X10641 | Base Plate | |
|||
| 1205 | WB06X10308 | Cover Power Cord | |
|||
| 1208 | WB06X10313 | Mount Vent Motor Cover | |
|||
| 1225 | WB07X11346 | Grille,ss | |
|||
| 1240 | WB06X10359 | Filter Grease | |
|||
| 1242 | WB06X10554 | Holder Assembly | |
|||
| 1417 | WB26X10185 | Motor(circ) Synchronous | |
|||
| 1522 | WB02X10750 | Rack Holder | |
|||
| 1816 | WB01X10216 | Screw Machine,pan Head | |
|||
| 2944 | WB01X10124 | Nut Assy | |
|||
| 4013 | WB56X10642 | Cover Asm Back | |
