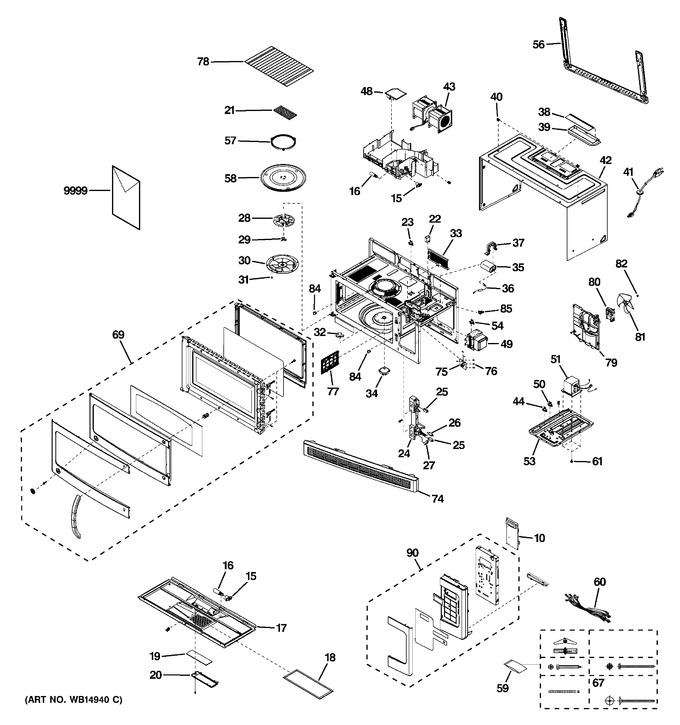

1 - Microwave
| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 10 | WB27X11078 | Smart Board |  |
|||
| 15 | WB08X10016 | Socket Lamp | |
|||
| 16 | WB36X10003 | Lamp-incandescent | |
|||
| 17 | WB56X10718 | Base Bottom | |
|||
| WB56X10721 | Base Bottom | |
||||
| 18 | WB06X10596 | Filter-air | |
|||
| 19 | WB36X10071 | Glass-cooktop Lamp | |
|||
| 20 | WB36X10216 | Cover-glass | |
|||
| WB36X10217 | Cover-glass | |
||||
| 21 | WB06X10823 | Filter-charcoal | |
|||
| 22 | WB27X10170 | Capacitor-motor | |
|||
| 23 | WB27X11094 | Tco Cavity | |
|||
| 24 | WB06X10676 | Latch-body | |
|||
| 25 | WB24X10038 | Switch-micro | |
|||
| 26 | WB24X10075 | Switch-micro | |
|||
| 27 | WB06X10128 | Lever-switch Lower | |
|||
| 28 | WB06X10812 | Blade-stirrer | |
|||
| 29 | WB06X10813 | Holder-stirrer | |
|||
| 30 | WB06X10814 | Cover-stirrer | |
|||
| 31 | WB06X10126 | Button-lock | |
|||
| 32 | WB06X10815 | Coupler | |
|||
| 33 | WB06X10816 | Cover-front | |
|||
| 34 | WB26X10233 | Turntable, Motor | |
|||
| 35 | WB27X10240 | Capacitor Hv | |
|||
| 36 | WB27X10817 | H.v. Diode | |
|||
| 37 | WB06X10713 | Bracket-hvc | |
|||
| 38 | WB06X10715 | Cover-damper | |
|||
| 39 | WB06X10133 | Damper-main | |
|||
| 40 | WB01X10071 | Holder Nut Asm | |
|||
| 41 | WB18X10442 | Power Cord Asm | |
|||
| 42 | WB56X10895 | Panel-outer, Bb | |
|||
| WB56X10898 | Panel-outer, Ww | |
||||
| WB56X10900 | Panel-outer, Cc | |
||||
| 43 | WB26X10234 | Motor-ventilation | |
|||
| 44 | WB27X709 | Thermo Sw-vent Mtr Con | |
|||
| 48 | WB06X10817 | Cover-lamp | |
|||
| 49 | WB27X11079 | Magnetron Asm | |
|||
| 50 | WB21X10162 | Tco - Bottom | |
|||
| 51 | WB20X10043 | Trans-h.v | |
|||
| 53 | WB56X10896 | Base Plate Sub Asm | |
|||
| 54 | WB27X11095 | Tco - Magnetron | |
|||
| 56 | WB56X10446 | Plate Mounting Asm | |
|||
| 57 | WB06X10818 | Guide Roller, Tt | |
|||
| 58 | WB49X10224 | Tray Cooking | |
|||
| 59 | WB01X10181 | Hardware Asm | |
|||
| 60 | WB18X10445 | Wire Harness-a | |
|||
| 61 | WB01X10084 | Screw-washer Hvt | |
|||
| 67 | WB01X10180 | Bolt-flat | |
|||
| 69 | WB55X10948 | Door Asm Bb | |
|||
| WB55X10949 | Door Asm Bq | |
||||
| WB55X10950 | Door Asm Ww | |
||||
| WB55X10952 | Door Asm Cs | |
||||
| WB55X10951 | Door Asm Ss | |
||||
| 74 | WB07X11282 | Grille Asm Bb | |
|||
| WB07X11283 | Grille Asm Cc | |
||||
| WB07X11284 | Grille Asm Ww | |
||||
| WB07X11286 | Grille Asm Cs | |
||||
| WB07X11285 | Grille Asm Ss | |
||||
| 75 | WB02X11200 | Noise Filter Asm | |
|||
| 76 | WB4X175 | Supporter-pcb | |
|||
| 77 | WB06X10822 | Cover-mgt | |
|||
| 78 | WB48X10070 | Rack-wire | |
|||
| 79 | WB26X10235 | Cover-motor | |
|||
| 80 | WB26X10265 | Motor,fan | |
|||
| 81 | WB26X10090 | Blade-fan | |
|||
| 82 | WB09X10042 | Spring-blade | |
|||
| 84 | WB06X10521 | Holder-rack | |
|||
| 85 | WB06X10819 | Holder-wire | |
|||
| 90 | WB56X10823 | Assy-control Panel | |
|||
| WB56X10824 | Assy-control Panel | |
||||
| WB56X10826 | Control Panel Asm, Ss | |
||||
| WB56X10822 | Assy-control Panel | |
||||
| WB56X10825 | Assy-control Panel | |
||||
| 9999 | 49-40613 | User & Care Manual | |
|||
| 49-40615-1 | Insrtuction Install | |
||||
| 49-40614 | Use & Care Manual | |
||||
| 31-41032 | Mini Manual | |
