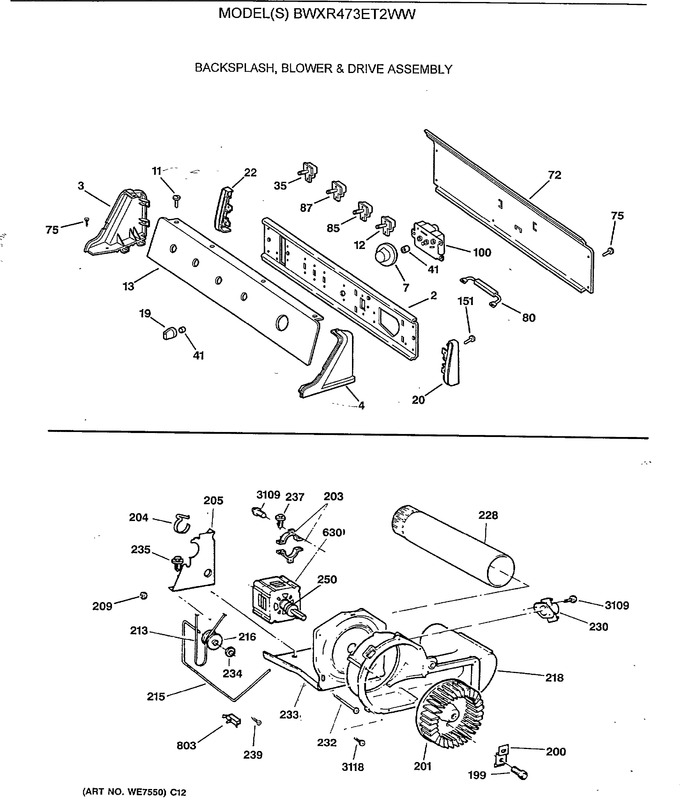

1 - Backsplash, Blower & Drive Assembly


2 - Front Panel & Door


3 - Drum


4 - Cabinet


Diagram #	Part Number		Description	Series	Find a Video
1	31-2791		Mini Manual
	79-9053		Manual Use & Care
	31-1742		Install Instructions
2	WH46X348		Support Switch
3	WE19M940		End Cap Lh Wh
4	WE19M941		End Cap Rh Wh
7	WE1X1267		Knob Timer Wh
11	WH2X1206		Scr 8-18 Ab Flt 5/8 Sn
12	WH12X1005		Buzzer
13	WE19M973		Switch Trim Asm
19	WE1X1271		Knob & Clip Asm Wh
20	WE19X984		Cap Support Switch Rh
22	WE19X983		Cap Support Switch Lh
35	WE4X881		Switch Rotary Start
41	WE1X980		U Clip
72	WE20X811		Panel Back
75	WE2M173		Screw
80	WE4M186		Resistor
85	WE4M177		Switch Rotary
87	WE4M185		Switch Rotary Temp
100	WE4M189		Timer Dryer
151	WE2M175		Screw
199	WE2X280		Scr 14-10 A Hx 1 S
200	WE1X688		Clamp
201	WE16X30		Blower Wheel
203	WE13X182		Strap Motor
204	WE1X921		Strap Motor
205	WE13M22		Bracket Motor
209	WE2M165		Speednut
213	WE12M22		Belt Drive
215	WE3M17		Spring Idler
216	WE12M8		Pulley Idler
218	WE14M78		Housing Blower
228	WE14M54		Elbow Exhaust
230	WE4M156		Thermostat (poly)
232	WE2M156		Screw
233	WE13M25		Bracket Motor
234	WE2M96		Cap Nut
235	WE2M155		Screw
237	WE2M148		Screw
239	WE2M167		Screw
250	WE12X41		Pulley Drive
630	WE17M22		Motor Asm
803	WD21X557		Switch Interlock
3109	WE2M154		Screw
3118	WH2M342		Screw
