Diagram for 1 - Freezer Door
1 - Freezer Door

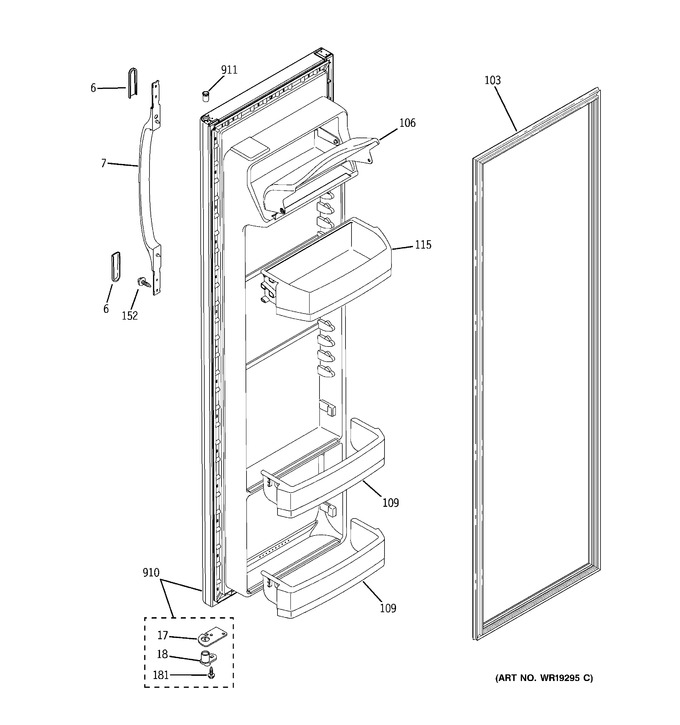

Diagram for 2 - Fresh Food Door
2 - Fresh Food Door

Diagram for 3 - Freezer Section
3 - Freezer Section

Diagram for 4 - Freezer Shelves
4 - Freezer Shelves

Diagram for 5 - Ice Maker & Dispenser
5 - Ice Maker & Dispenser

Diagram for 6 - Fresh Food Section
6 - Fresh Food Section

Diagram for 7 - Fresh Food Shelves
7 - Fresh Food Shelves

Diagram for 8 - Sealed System & Mother Board
8 - Sealed System & Mother Board


New Model Search:



Manufacturer: GE

Keyword Search:


< Back to Home

Diagram # Part Number Description Series Find a Video
6 WR12X10207 Tail Handle Sxs Wh Find a Video
7 WR12X10821 Handle Sxs Find a Video
17 WR02X11430 Plate Door Stop Ff Find a Video
18 WR02X11479 Cam & Thimble Ff Find a Video
103 WR24X10128 Gasket Door Ff Find a Video
106 WR22X10030 Door Dairy Find a Video
109 WR71X10519 Shelf Module Fixed Ff Find a Video
115 WR71X10518 Shelf Module Ff Find a Video
152 WR01X10596 Scr 8-18 Ab Fltr 5/8 S Find a Video
181 WR01X10215 Scr 10-32 Tt Hxw 3/4 S Find a Video
910 WR78X11645 Door Asm Foam Ff Wh Find a Video
911 WR01X10201 Thimble Top Closed Find a Video

    View Diagram in Separate Window     Print Icon   Print Part List
