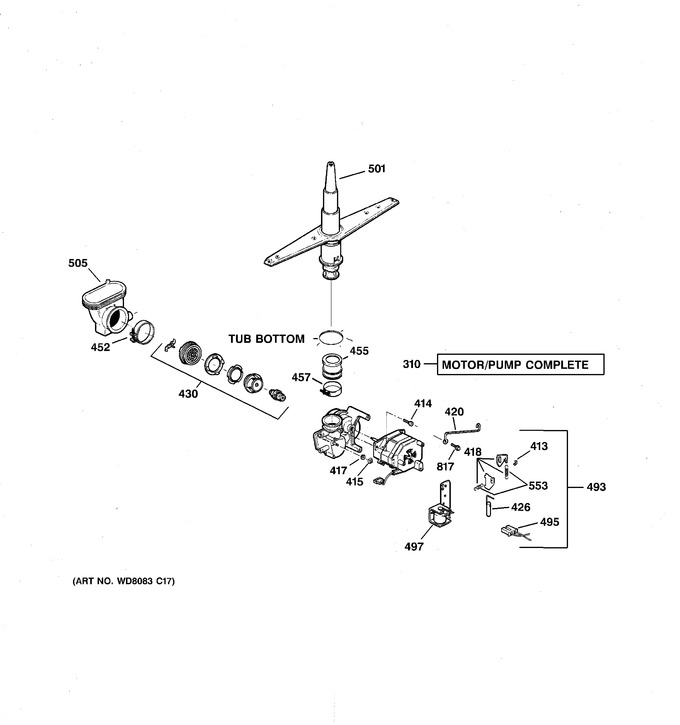

3 - Motor-pump Mechanism


Diagram #	Part Number		Description	Series	Find a Video
310	WD26X10011		Mechanism S/s Asm
413	WD3X487		Ps Retainer
414	WD2X444		Screw Mech Hanger
415	WD2X429		Nut Push On
417	WD8X181		Gate Shaft Seal
418	WD35X192		Gate Valve Arm Kit
420	WD1X1482		Hanger Mech
426	WD1X1316		Armature Link Assembly
430	WD19X10032		Kit Impeller Asm
452	WD1X1392		Clamp Hose
455	WD18X214		Connector Pump Asm
457	WD1X1376		Clamp (pump Connector)
493	WD21X10057		Bracket & Solenoid
495	WD01X10257		Housing Special
497	WD21X10060		Solenoid & Brkt Asm
501	WD22X155		Spray Arm Asm
505	WD18X213		Sump Inlet
553	WD3X721		Spring Gate Act
817	WD1X550		Scr 8-32 Pnt 1/2 S
	WD2X445		Scr 10-32 T Hex .7 S
