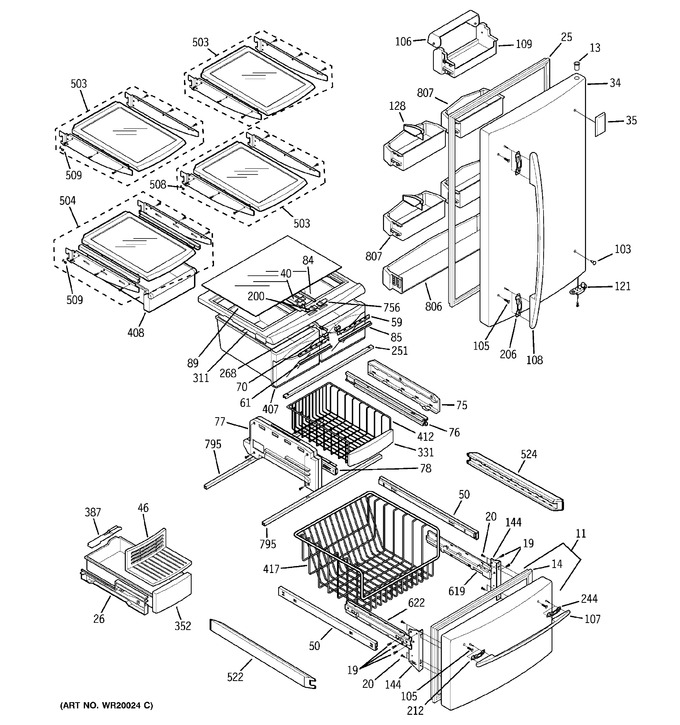

Diagram #	Part Number		Description	Series	Find a Video
11	WR78X11160		Door Asm - Fzr
13	WR01X10493		Bush
14	WR14X10179		Gasket Asm,fz
19	WR01X10637		Screw Drawing
20	WR01X10638		Screw Drawing
25	WR14X10180		Gasket Asm,ff
26	WR17X11585		Guide Rail(ice)bin
34	WR78X11161		Door Asm - Ff
35	WR04X10139		Name Plate
40	WR02X11684		Guide Rail(middle T/v)
46	WR30X10050		Shelf Ice Tray
50	WR17X11931		Rail Asm
59	WR02X11674		Link,humidity Right
61	WR02X11673		Link,humidity Left
70	WR02X11701		Rail Slide Center
75	WR02X12037		Guide,rail-r
77	WR02X12038		Guide Asm. Rail
78	WR17X12059		Rail Slide Lh
84	WR14X10176		Middle Gasket
85	WR14X10178		Front Gasket
89	WR32X10468		Glass Cover Veg Pan
103	WR02X12041		Plug Button Gray
105	WR01X10446		Bolt-door Handle
106	WR02X11706		Dairy Door Cvr
107	WR12X10672		Handle,fzr Door
108	WR12X10671		Handle,ff Door
109	WR71X10549		Dairy Bin
121	WR02X11675		Stopper,door Bk
128	WR02X11680		Snugger
144	WR02X11687		Connector Door
200	WR02X11689		Shutter Slide
206	WR02X11679		Bracket Handle Ff
212	WR02X11678		Bracket Handle Fzr Left
244	WR02X11677		Bracket Handle Fz Right
251	WR02X11707		Supportor Cover T/v
268	WR02X11671		Adjuster
311	WR72X10153		Frame Lower Pan
331	WR12X10659		Fz Bskt Upper Handle
352	WR30X10052		Ice Bin
387	WR02X11662		Cover Ice Bin
407	WR32X10469		Veg Pan
408	WR32X10470		Tray Assembly,snack
412	WR21X10084		Fz Bskt Upper
417	WR21X10082		Fz Bskt
503	WR71X10575		Shelf Assembly
504	WR71X10576		Shelf Assembly
508	WR02X12053		Shelf Stopper
509	WR02X12054		Cover Stopper
522	WR02X12035		Rail Support Left
524	WR02X12036		Rail Support Right
619	WR17X11587		Connector Asm Right
622	WR17X11588		Connector Asm Left
756	WR02X11688		Shutter Slide
795	WR30X10053		Supportor Divider
806	WR71X10551		Door Bin- Lower
807	WR71X10550		Door Bin - Upper
