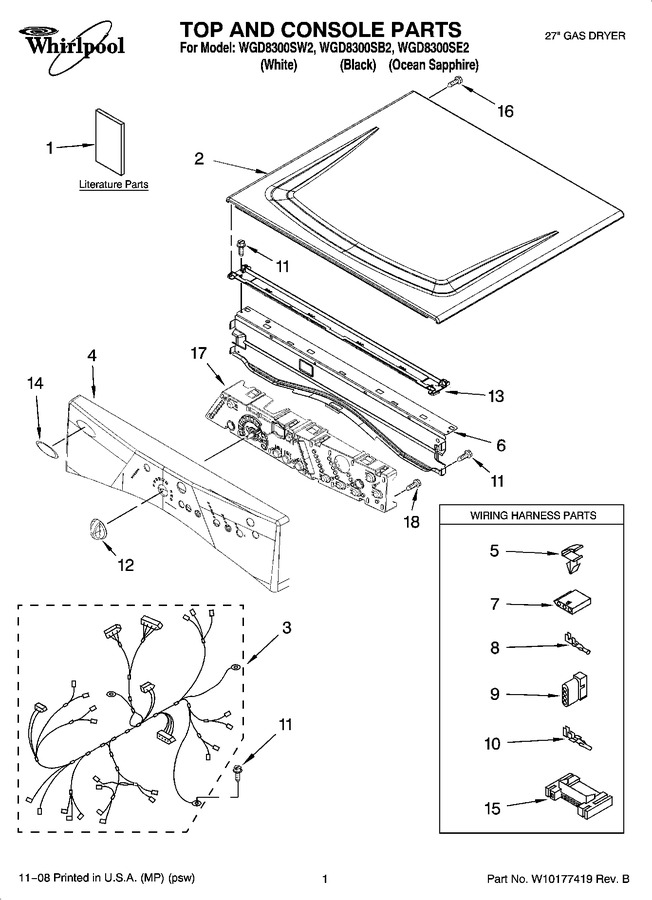

Diagram # | Part Number | Description | Series | Find a Video | ||
---|---|---|---|---|---|---|
1 | W10151582 | Use & Care Guide | ||||
8578904 | Guide, Quick Start | |||||
8578834 | Tech Sheet | |||||
2 | WPW10129703 | Top (black) | ||||
WPW10336080 | Top (white) (Replaces:8563730) | |||||
W10174561 | Top (ocean Sapphire) | |||||
3 | W10110973 | Harness, Main | ||||
4 | W10182077 | Panel, Console (ocean Sapphire) | ||||
W10099631 | Panel, Console (black) | |||||
WPW10099598 | Panel, Console (white) | |||||
5 | WP3394427 | Clip, Harness | ||||
6 | WP8565237 | Bracket, Console | ||||
7 | 353424 | Connector, Sensor | ||||
8 | WP94614 | Terminal | ||||
9 | 3936144 | Plug, Terminal | ||||
10 | WP596797 | Terminal (Replaces:94613) | ||||
11 | 3390647 | Screw, 8-18 X 1/2 | ||||
12 | WP8574963 | Knob (white) (Replaces:8574974) | ||||
W10182079 | Knob (ocean Sapphire) | |||||
W10129067 | Knob (black) | |||||
13 | WPW10266747 | Channel, Water (Replaces:8574968) | ||||
14 | W10854980 | Badge, Assembly (Replaces:W10117943) | ||||
15 | 3395683 | Connector (motor) | ||||
16 | 3400238 | Screw, 2-28 X 1/2 | ||||
17 | WP8571955 | Assembly, User Interface | ||||
18 | 3400238 | Screw, 2-28 X 1/2 |
