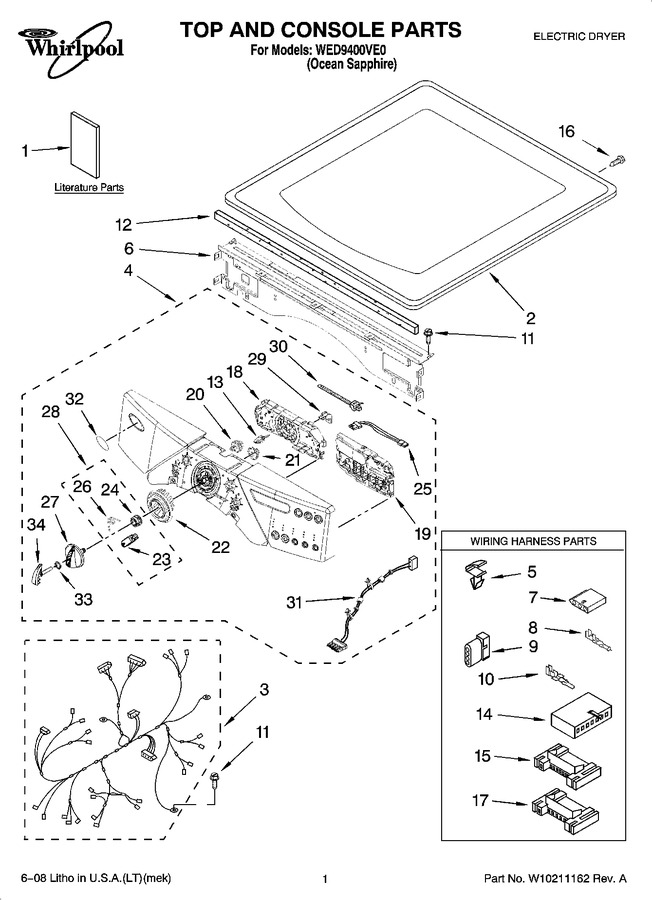

Diagram # | Part Number | Description | Series | Find a Video | ||
---|---|---|---|---|---|---|
1 | W10177459 | Tech Sheet | ||||
W10111226 | Guide, Quick Start | |||||
W10134980 | Installation, Diagnostic Guide | |||||
W10182361 | Use & Care Guide | |||||
2 | W10144446 | Top | ||||
3 | W10111012 | Harness, Main | ||||
4 | WPW10191973 | Panel, Console (includes Items: 20,21,22,27,28) | ||||
5 | WP3394427 | Clip, Harness | ||||
6 | W10215656 | Bracket, Console (includes No.12) (Replaces:W10006840) | ||||
7 | 353424 | Connector, Sensor | ||||
8 | WP94614 | Terminal (female) | ||||
9 | 3936144 | Plug, Terminal | ||||
10 | WP596797 | Terminal (Replaces:94613) | ||||
11 | 3390647 | Screw, 8-18 X 1/2 | ||||
12 | W10112267 | Foam-seal | ||||
13 | W10012480 | Array-power (Replaces:W10030070) | ||||
14 | 3936150 | Connector, 7-circuit | ||||
15 | 3395683 | Connector (motor) | ||||
16 | 303776 | Screw, 8-32 X 1/32 (Replaces:98139) | ||||
17 | 2203186 | Connector, 5-circuit | ||||
18 | W10121375 | User Interface (center) (includes: Item. 13 ) | ||||
19 | W10294631 | User Interface (right) (Replaces:W10172214) | ||||
20 | W10012430 | Encoder-wheel | ||||
21 | WPW10012440 | Retainer-snap | ||||
22 | WPW10012410 | Knob, Light Ring (includes: Illus. 21 ) | ||||
23 | 280230 | Rast, Wheel Assembly (service Only With Illus. 28 ) (Replaces:W10012810) | ||||
24 | 280230 | Detent Wheel (service Only With Illus. 28) (Replaces:W10012450) | ||||
25 | W10095960 | Harness, Communication | ||||
26 | 280230 | Knob, Spring (2) (service Only With Illus. 28 ) (Replaces:W10012820) | ||||
27 | WPW10116704 | Knob, Control (includes: Illus. 21 ) | ||||
28 | 280230 | Encoder, Wheel Kit (includes Items: 23, 24, & 26) | ||||
29 | W10112268 | Clip, Harness | ||||
30 | WP3391018 | Tie, Cable | ||||
31 | W10111020 | Power Cable, User-interface | ||||
32 | W10854980 | Badge (Replaces:W10117943) | ||||
33 | W10012830 | Knob, O-ring | ||||
34 | W10029940 | Knob, Cap |
