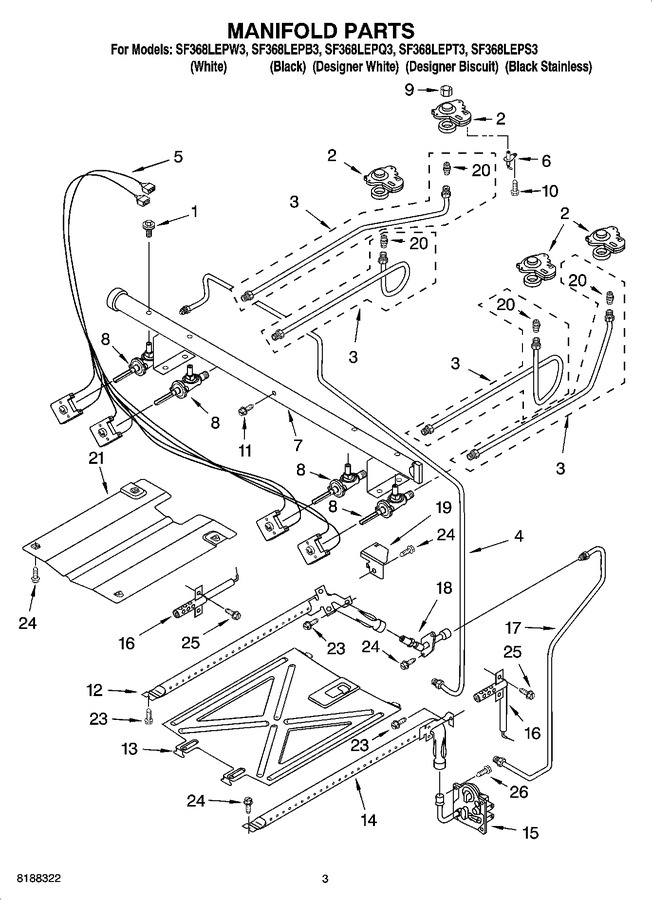

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 1 | WP8273096 | Screw, Valve |  |
|||
| 2 | WP8273700 | Burner Base (large (4)) | |
|||
| 3 | WP8273695 | Tubing, Burner W/orifice (right Front) | |
|||
| WP8273697 | Tubing, Burner W/orifice (right Rear) | |
||||
| WP8273693 | Tubing, Burner W/orifice (left Front) | |
||||
| 8273698 | Tubing, Burner W/orifice (left Rear) | |
||||
| 4 | 8523402 | Tubing (manifold To Regulator) | |
|||
| 5 | WPW10295998 | Harness, Igniter (w/switches) (Replaces:8523406) | |
|||
| 6 | WP8523793 | Electrode (4) | |
|||
| 7 | 9762230 | Pipe, Manifold (Replaces:8523407) | |
|||
| 8 | WP9757218 | Valve (lf - Rf - Lr) | |
|||
| WP8273004 | Valve (right Rear) | |
||||
| 9 | WP8273060 | Nut (4) | |
|||
| 10 | WP8273062 | Screw (4) | |
|||
| 11 | 3400228 | Bolt | |
|||
| 12 | WP8054078 | Burner, Broiler | |
|||
| 13 | WP8053970 | Spreader, Flame (oven) | |
|||
| 14 | WP9758078 | Burner, Bake | |
|||
| 15 | WPW10293048 | Valve, Gas (Replaces:9761959) | |
|||
| 16 | WP9758079 | Igniter (bake) | |
|||
| WP8054129 | Igniter (broil) | |
||||
| 17 | WP8272222 | Tubing (broiler Fitting To Valve) | |
|||
| 18 | 3186489 | Fitting, Broiler | |
|||
| 19 | 8272403 | Cover, Igniter | |
|||
| 20 | WP8273064 | Orifice, Burner (left Front) | |
|||
| WP8273065 | Orifice, Burner (right Front) | |
||||
| WP8273067 | Orifice, Burner (right Rear) | |
||||
| WP8273066 | Orifice, Burner (left Rear) | |
||||
| 21 | W10137062 | Spreader, Flame (broiler) (Replaces:8053262) | |
|||
| 23 | 3196265 | Screw | |
|||
| 24 | W11233072 | Screw (Replaces:3196176) | |
|||
| 25 | 3196385 | Screw | |
|||
| 26 | WP8523418 | Spuds, Lp Gas (kit Of 4) | |
|||
| WP3400016 | Screw | |
