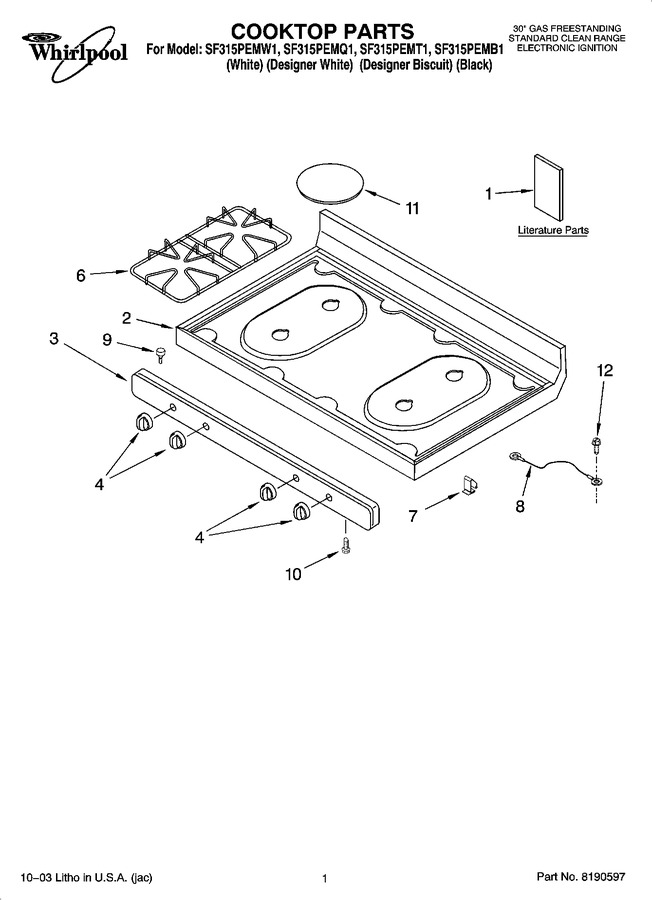

Diagram # | Part Number | Description | Series | Find a Video | ||
---|---|---|---|---|---|---|
1 | LIT98014109 | Literature Parts (instructions Installation) | ||||
LIT98007121 | Literature Parts (installation Instr (template)) | |||||
LIT98014377 | Literature Parts (guide, Use & Care) | |||||
LIT98007130 | Literature Parts (safer Cooking Tips) | |||||
LIT98007031 | Literature Parts (tech Sheet) | |||||
2 | 98009678 | Cooktop (biscuit) | ||||
98009676 | Cooktop (black) | |||||
98009677 | Cooktop (white) | |||||
3 | 98009461 | Panel, Manifold (white) | ||||
98009459 | Panel, Manifold (biscuit) | |||||
98009460 | Panel, Manifold (black) | |||||
4 | WP98006100 | Knob, Burner (4) (black) | ||||
WP98006102 | Knob, Burner (4) (white) | |||||
WP98008208 | Knob, Burner (4) (biscuit) | |||||
6 | 8190014 | Grate, Burner (2) (gray) (Replaces:98013747) | ||||
7 | W11229684 | Clip, Cooktop (2) (Replaces:98004722) | ||||
8 | 3184020 | Wire, Ground (Replaces:98007209) | ||||
9 | W10831827 | Bumper, Cooktop (Replaces:98013389) | ||||
10 | W11233072 | Screw (3) (Replaces:98005000) | ||||
11 | WP98005518 | Cap, Burner (black) (Replaces:98003979) | ||||
12 | WP98007225 | Screw |
