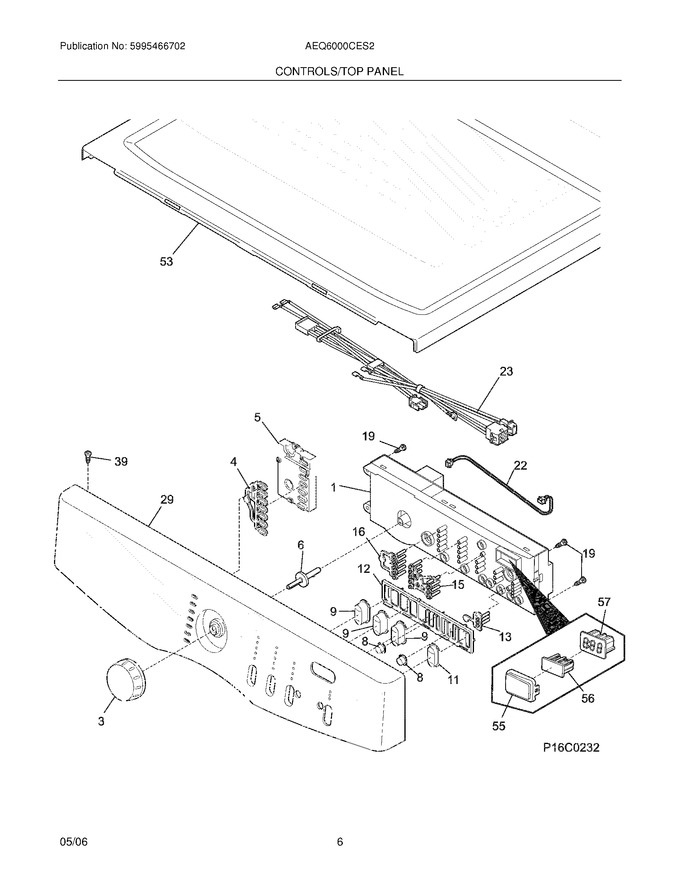

07 - Controls/top Panel


09 - Motor


Diagram #	Part Number		Description	Series	Find a Video
F1	134557201NH		Control Board,printed Circuit ,with Housing   (Replaces:134557201)
3	134551210		Knob,program   (Replaces:134551200)
4	134553100		Light Pipe,program
F5	134556500NH		Interface Board,pc ,auxiliary   (Replaces:134556500)
6	134347700		Pin,program Knob
8	134555500		Push Button,round ,no.1
9	134553400		Push Button,oval ,no.1
11	134595600		Push Button,oval ,start
12	134553300		Spring,push Button
13	134557501		Light Pipe,start Group
15	134552800		Light Pipe,5 X 4
16	134600000		Light Pipe,row Of 5
19	134402900		Screw,phillips ,6-19 X 0.650
F22	134602100		Wiring Harness,interface Board
F23	134394400		Wiring Harness,controls
29	134557000		Panel,control Console
39	134178901		Screw,8-18ab X 0.455
53	137371700		Panel,work Top ,white   (Replaces:134365000)
55	134553200		Lens,digital Display
56	134557300		Light Pipe,digital Display
F57	134503300		Display,digital
NI	134394200		Wiring Harness,main
