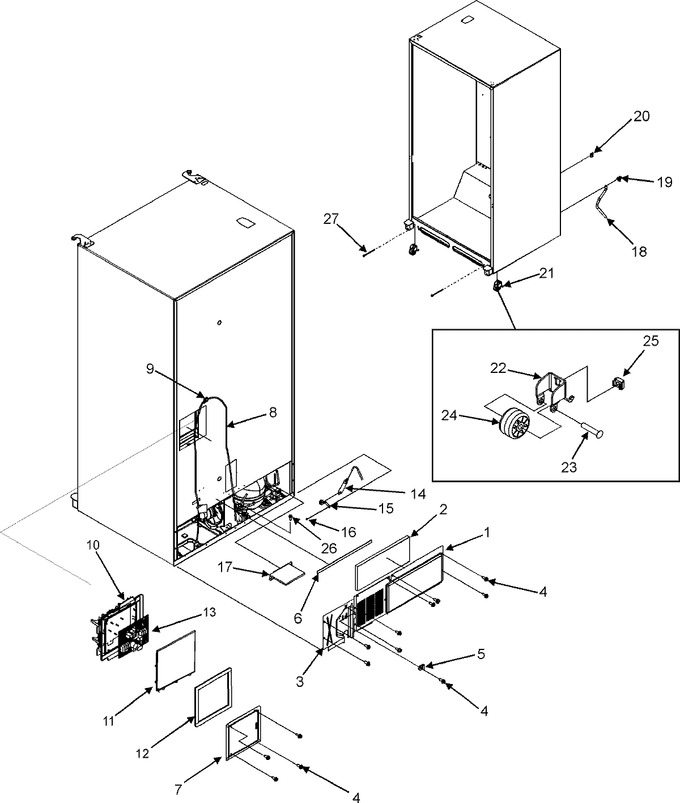

Diagram # | Part Number | Description | Series | Find a Video | ||
---|---|---|---|---|---|---|
1 | 12575101WD | Back, Mach Comp (Replaces:12575101ED) | 10 | |||
2 | 67003796 | Fiber, Acoustic | 10 | |||
3 | 12701907 | Cover, Water Valve (Replaces:67005117) | 10 | |||
4 | 67006425 | Screw, Sm | 10 | |||
5 | W10833902 | Clamp, Tube (Replaces:M0108105) | 10 | |||
6 | B5759649 | Gasket, Mc Back | 10 | |||
7 | 67006427 | Cover, Control Box | 10 | |||
8 | WP67006506 | Cord, Power (Replaces:12583301) | 10 | |||
9 | M0104102 | Clip, Cord | 10 | |||
10 | WP67006390 | Box, Hv Control | 10 | |||
11 | 67006428 | Lid, Hv Control | 10 | |||
12 | 67006429 | Gasket, Hv Control | 10 | |||
13 | W10890094 | Board, Hv Control, Ice2o (Replaces:67006389) | 10 | |||
14 | WPB2150504 | Drier | 10 | |||
15 | 10547002 | Clip, Drier | 10 | |||
16 | WP489069 | Screw (Replaces:M0220617) | 10 | |||
17 | 12820504 | Pad, Acoustic (Replaces:67006431) | 10 | |||
18 | 67001066 | Tube, Drain | 10 | |||
19 | 67001067 | Clip, Drain Tube | 10 | |||
20 | WPM0104106 | Clip | 10 | |||
21 | WP12580304 | Roller Bracket Assy (Replaces:67002227) | 10 | |||
22 | 12456801V | Bracket, Roller (Replaces:12456801) | 10 | |||
23 | WPM1205302 | Rivet | 10 | |||
24 | WP10450603 | Roller (Replaces:67005127) | 10 | |||
25 | M0286708 | Nut, Speed | 10 | |||
26 | 12992301 | Screw, Tf (Replaces:M0231604) | 10 | |||
27 | 71003131 | Bolt, Roller Adj (Replaces:12606102) | 10 |
