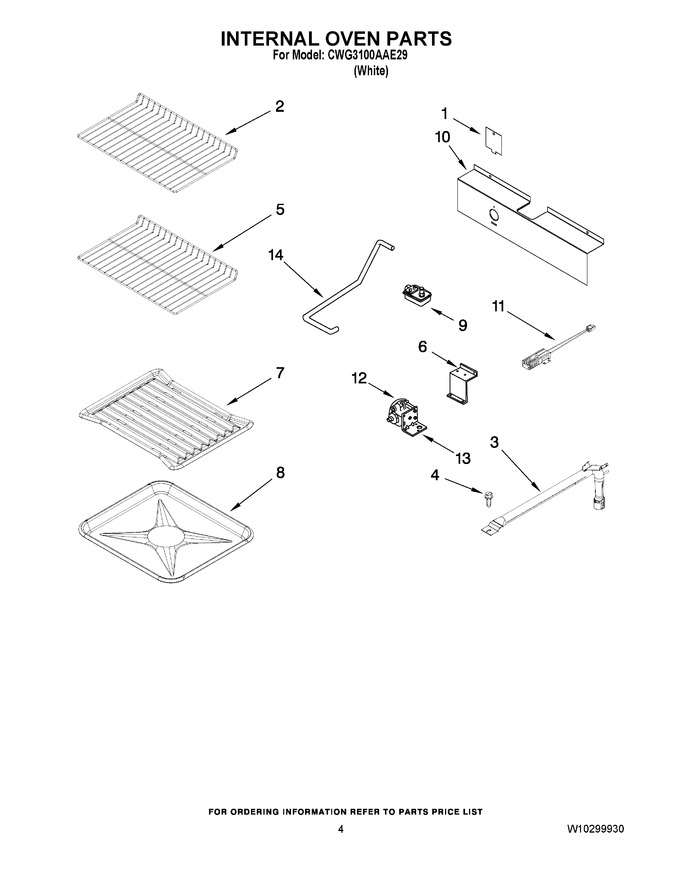

Diagram # | Part Number | Description | Series | Find a Video | ||
---|---|---|---|---|---|---|
1 | W10218965 | Cover, Hole | ||||
2 | 71003346 | Rack, Oven (Replaces:7801P153-60) | ||||
3 | 74005025 | Burner, Broil (Replaces:7505P295-60) | ||||
4 | 7101P287-60 | Screw | ||||
5 | 71003346 | Rack, Oven(2) (Replaces:7801P153-60) | ||||
6 | 3807F467-51 | Support, Valve | ||||
7 | 3413F018-19 | Insert, Broil | ||||
8 | 3401F075-19 | Pan, Broiler | ||||
9 | WP74005550 | Valve, Oven (Replaces:7501P176-60) | ||||
10 | W10204427 | Cover, Valve | ||||
11 | 74007498 | Ignitor, Oven (Replaces:7432P106-60) | ||||
12 | 74005551 | Regulator, Pressure (Replaces:7510P082-60) | ||||
13 | 3807F466-51 | Support, Regulator | ||||
14 | 7506P266-60 | Tubing, Valve |
