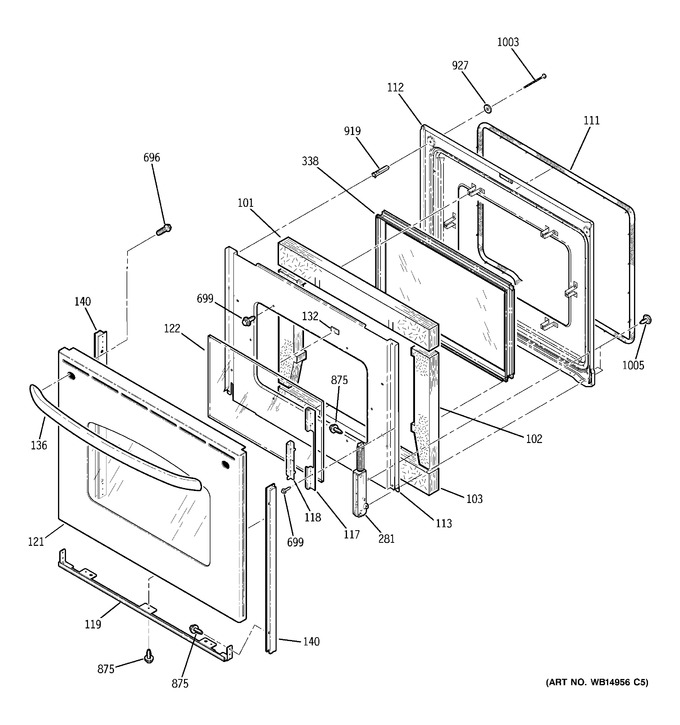

4 - Door


5 - Door Lock


Diagram #	Part Number		Description	Series	Find a Video
101	WB35T10016		Door Insulation
102	WB35T10114		Insulation Door
103	WB35T10255		Insulation Door
111	WB04T10001		Ovn Gasket
112	WB53T10007		Liner Oven Door Asm
113	WB56T10178		Retainer Ovn Dr Insln
117	WB56T10320		Retainer Glass Ovn Dr
118	WB56T10321		Retainer Glass Ovn Dr
119	WB07T10462		Trim Ovn Dr Btm Bk
121	WB56T10282		Panel Asm Bonded
122	WB57K5230		Oven Door Glass-inner
132	WB01T10026		Door Pad
136	WB15T10196		Handle Ss
140	WB56T10287		Frame Door Side (bk)
281	WB10T10069		Hinge Door
338	WB56T10105		Pack Window Asm Lwr
696	WB01T10103		Scr 10-16 Ab Hxw .532
699	WB1K5150		Screw St10-16 X 7/16"
875	WB01T10046		Scr 8-18 Ab Hw 9/16 Blk
	WH2X930		Screw 8-18 Ab Hxw 3/8
919	WB02T10175		Spacer
927	WB1X119		Contoured Washer
1003	WB01T10097		Scr 10-32 Tpt Pnt 2.51 S
1005	WB01T10008		Scr 10-32 Tr T
