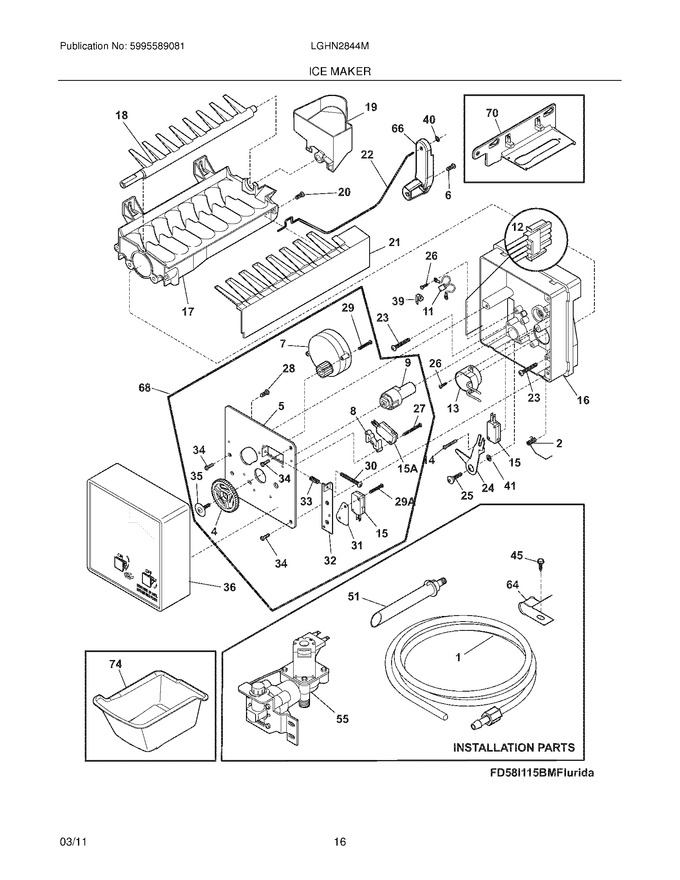

| Diagram # | Part Number | Description | Series | Find a Video | ||
|---|---|---|---|---|---|---|
| 1 | 242082103 | Tube-water |  |
|||
| 2 | 5304469396 | Spring-shutoff Arm,ice Maker | |
|||
| 4 | 5304469403 | Gear | |
|||
| 5 | 5304469399 | Mounting Plate | |
|||
| 6 | 5304455670 | Screw-ground Wire,8-32 X 0.250 (Replaces:3206305) | |
|||
| 7 | 5304469407 | Motor-ice Maker | |
|||
| 8 | 5304469404 | Spacer-hold Switch | |
|||
| 9 | 5304469402 | Cam | |
|||
| 11 | 5304455695 | Thermal Cutoff,ice Maker ,complete Assy | |
|||
| F12 | 5304469390 | Harness-wiring | |
|||
| 13 | 5304469387 | Thermostat Assy,ice Maker | |
|||
| 14 | 5304469394 | Screw,no.5-24 X 3/4 | |
|||
| F15 | 5304469388 | Switch-micro,2 | |
|||
| 16 | 5304469379 | Housing,control | |
|||
| F17 | 5304469413 | Mold-ice Maker,with Heater | |
|||
| 18 | 5304469384 | Ejector-ice | |
|||
| 19 | 242051201 | Cup-water Inlet,w/bearing | |
|||
| 20 | 5304469391 | Screw,8-32 X 3/8 | |
|||
| 21 | 5304469378 | Ice Stripper | |
|||
| 22 | 242051301 | Shut-off Arm | |
|||
| 23 | 5304469392 | Screw,mold-to-support ,(2) | |
|||
| 24 | 5304469382 | Lever Arm | |
|||
| 25 | 5304469397 | Screw,lever Arm/sprt | |
|||
| 26 | 5304469393 | Screw | |
|||
| 27 | 5304469410 | Screw,hold Switch Mtg ,(2) | |
|||
| 28 | 5304455670 | Screw,no.8-32 X 1/4`` (Replaces:5304469414) | |
|||
| 29 | 5304469409 | Screw | |
|||
| 30 | 5304469408 | Screw-timing Adj,8-32 X 1.000 | |
|||
| 31 | 5304469389 | Spacer-switch | |
|||
| 32 | 5304469400 | Plate-valve Switch | |
|||
| 33 | 5304469401 | Spring,timing Adjust | |
|||
| 34 | 5304469380 | Screw,no.8-10x1/2 | |
|||
| 35 | 5304469411 | Screw | |
|||
| 36 | 5304469385 | Cover-ice Maker | |
|||
| 39 | 5304469383 | Clamp | |
|||
| 40 | 5304458401 | Clip-retainer | |
|||
| 41 | 5304469381 | Washer,flat | |
|||
| 45 | 5303307980 | Screw,hex Hd Wshr ,no.8-32 X 1/2 (Replaces:5304453923) | |
|||
| 51 | 5303918600 | Tube-water Inlet,plastic (Replaces:242053201) | |
|||
| F55 | 242252702 | Valve-water,triple Solenoid (Replaces:241734301) | |
|||
| 64 | 5304455846 | Clamp-cable (Replaces:5304453921) | |
|||
| 66 | 242060701 | Bracket-ice Maker,shut Off Arm | |
|||
| 68 | 5304469398 | Mounting Plate,assy | |
|||
| 70 | 242041701 | Bracket-ice Maker | |
|||
| 74 | 5304518913 | Container-ice (Replaces:242041901) | |
|||
| F15A | 5304469405 | Switch-micro | |
|||
| 29A | 5304469412 | Screw,no.4-24 X 3/4`` | |
|||
| NI | 241806601 | Connector-water,straight (Replaces:242103001) | |
|||
| 242220204 | Tube-water,brown/tan (Replaces:218976432) | |
||||
| 218976433 | Tube-water | |
||||
| 218976423 | Tube-water Inlet,56.00`` ,brown/tan | |
||||
| 240363602 | Screw-shoulder | |
||||
| 5304515677 | Screw,truss Hd Quad ,no.10-16 X .500 ,zinc (Replaces:240383406) | |
||||
| 240555002 | Screw,hex Washer Head ,8-32t X 0.375 (Replaces:241690701) | |
||||
| 242039701 | Screw | |
||||
| 240396801 | Clamp,tube/wiring ,nylon ,black/natural | |
||||
| 5303918493 | Ice Maker,radius Cube ,115 V ,service (Replaces:241798219) | |
||||
| 5304469406 | Insulator | |
